BBS Class Reference

#include <bbs.h>

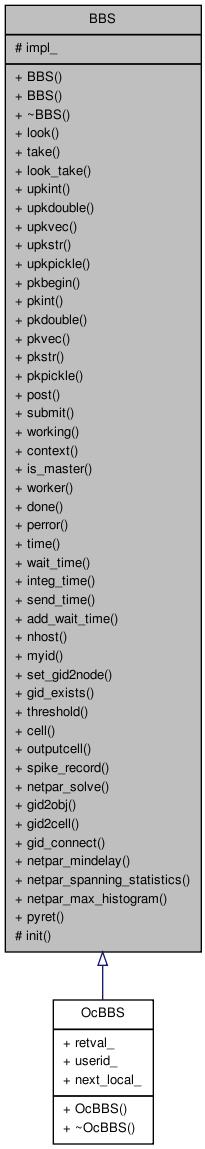

Inheritance diagram for BBS:

[legend]

Collaboration diagram for BBS:

[legend]

List of all members.

Public Member Functions
	BBS ()
	BBS (int nhost)
virtual	~BBS ()
boolean	look (const char *)
void	take (const char *)
boolean	look_take (const char *)
int	upkint ()
double	upkdouble ()
void	upkvec (int n, double *px)
char *	upkstr ()
char *	upkpickle (size_t *size)
void	pkbegin ()
void	pkint (int)
void	pkdouble (double)
void	pkvec (int n, double *px)
void	pkstr (const char *)
void	pkpickle (const char *, size_t size)
void	post (const char *)
int	submit (int userid)
boolean	working (int &id, double &x, int &userid)
void	context ()
boolean	is_master ()
void	worker ()
void	done ()
void	perror (const char *)
double	time ()
double	wait_time ()
double	integ_time ()
double	send_time ()
void	add_wait_time (double)
int	nhost ()
int	myid ()
void	set_gid2node (int, int)
int	gid_exists (int)
double	threshold ()
void	cell ()
void	outputcell (int)
void	spike_record (int, IvocVect *, IvocVect *)
void	netpar_solve (double)
Object **	gid2obj (int)
Object **	gid2cell (int)
Object **	gid_connect (int)
double	netpar_mindelay (double maxdelay)
void	netpar_spanning_statistics (int *, int *, int *, int *)
IvocVect *	netpar_max_histogram (IvocVect *)
Object **	pyret ()
Protected Member Functions
void	init (int)
	HAVE_PVM3_H.
Protected Attributes
BBSImpl *	impl_

---

Constructor & Destructor Documentation

BBS::BBS

(

)

References init().

Here is the call graph for this function:

BBS::BBS

(

int

nhost

)

References init().

Here is the call graph for this function:

BBS::~BBS

(

)

[virtual]

References impl_.

---

Member Function Documentation

void BBS::add_wait_time

(

double

st

)

References impl_, BBSImpl::time(), and BBSImpl::wait_time_.

Here is the call graph for this function:

void BBS::cell

(

)

References check_obj_type(), chkarg(), hoc_execerror(), hoc_objgetarg(), ifarg(), int, MD, nrnmpi_myid, and Symbol::u.

Referenced by gid2cell(), and gid2obj().

Here is the call graph for this function:

void BBS::context

(

)

References BBSImpl::context(), and impl_.

Here is the call graph for this function:

void BBS::done

(

)

References BBSImpl::done(), and impl_.

Referenced by bbs_done().

Here is the call graph for this function:

Object ** BBS::gid2cell

(

int

gid

)

References assert, cell(), hoc_temp_objptr(), nrn_sec2cell(), ob2pntproc(), Point_process::sec, and sec.

Here is the call graph for this function:

Object ** BBS::gid2obj

(

int

gid

)

References assert, cell(), hoc_temp_objptr(), and nrn_sec2cell().

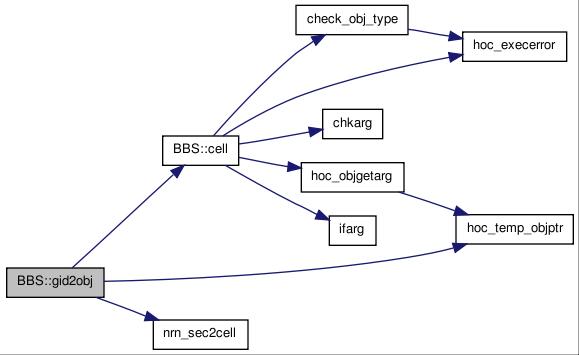

Here is the call graph for this function:

Object ** BBS::gid_connect

(

int

gid

)

References check_obj_type(), hoc_execerror(), hoc_objgetarg(), hoc_temp_objvar(), ifarg(), is_point_process(), net_cvode_instance, nil, nrnmpi_myid, ob2pntproc(), and Symbol::u.

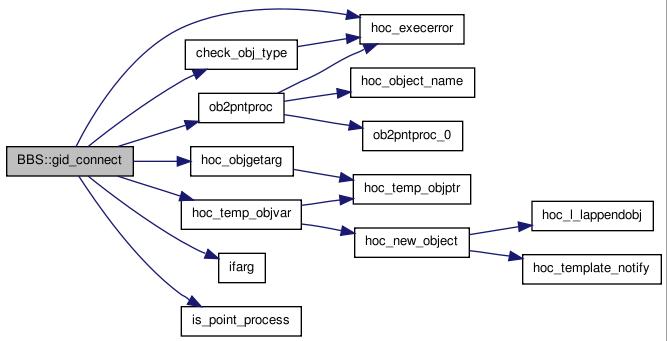

Here is the call graph for this function:

int BBS::gid_exists

(

int

gid

)

void BBS::init

(

int

)

[protected]

References impl_, BBSImpl::is_master_, BBSImpl::started_, and BBSImpl::use_pvm_.

Referenced by BBS().

double BBS::integ_time

(

)

References impl_, and BBSImpl::integ_time_.

boolean BBS::is_master

(

)

References BBSImpl::is_master_.

Referenced by bbs_done().

boolean BBS::look

(

const char *

key

)

References b, debug, impl_, and BBSImpl::look().

Here is the call graph for this function:

boolean BBS::look_take

(

const char *

key

)

References b, debug, impl_, and BBSImpl::look_take().

Here is the call graph for this function:

int BBS::myid

(

)

References nrnmpi_myid.

IvocVect * BBS::netpar_max_histogram

(

IvocVect *

mh

)

References h, and nil.

double BBS::netpar_mindelay

(

double

maxdelay

)

void BBS::netpar_solve

(

double

tstop

)

References bgp_dma_receive(), cvode_active_, dt, e, hoc_execerror(), impl_, BBSImpl::integ_time_, ncs2nrn_integrate(), nrn_spike_exchange(), nrnmpi_myid, nrnmpi_wtime(), BBSImpl::send_time_, tstopunset, and BBSImpl::wait_time_.

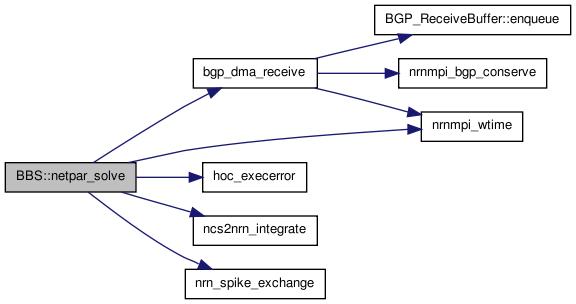

Here is the call graph for this function:

void BBS::netpar_spanning_statistics	(	int *	nsend,
		int *	nsendmax,
		int *	nrecv,
		int *	nrecv_useful
	)

int BBS::nhost

(

)

References nrnmpi_numprocs.

void BBS::outputcell

(

int

gid

)

References assert.

void BBS::perror

(

const char *

s

)

References impl_, and BBSImpl::perror().

Here is the call graph for this function:

void BBS::pkbegin

(

)

References debug, impl_, and BBSImpl::pkbegin().

Here is the call graph for this function:

void BBS::pkdouble

(

double

x

)

References debug, impl_, and BBSImpl::pkdouble().

Here is the call graph for this function:

void BBS::pkint

(

int

i

)

References debug, impl_, and BBSImpl::pkint().

Here is the call graph for this function:

void BBS::pkpickle	(	const char *	s,
		size_t	size
	)

References debug, impl_, and BBSImpl::pkpickle().

Here is the call graph for this function:

void BBS::pkstr

(

const char *

s

)

References debug, impl_, and BBSImpl::pkstr().

Here is the call graph for this function:

void BBS::pkvec	(	int	n,
		double *	px
	)

References debug, impl_, and BBSImpl::pkvec().

Here is the call graph for this function:

void BBS::post

(

const char *

key

)

References debug, impl_, and BBSImpl::post().

Here is the call graph for this function:

Object ** BBS::pyret

(

)

References assert, hoc_temp_objptr(), impl_, nrnpy_pickle2po, BBSImpl::pickle_ret_, and BBSImpl::pickle_ret_size_.

Here is the call graph for this function:

double BBS::send_time

(

)

References impl_, and BBSImpl::send_time_.

void BBS::set_gid2node	(	int	gid,
		int	nid
	)

References assert, nil, and nrnmpi_myid.

void BBS::spike_record	(	int	gid,
		IvocVect *	spikevec,
		IvocVect *	gidvec
	)

References assert.

int BBS::submit

(

int

userid

)

References impl_, and BBSImpl::submit().

Here is the call graph for this function:

void BBS::take

(

const char *

key

)

References debug, impl_, t, BBSImpl::take(), and time().

Here is the call graph for this function:

double BBS::threshold

(

)

References assert, chkarg(), getarg(), ifarg(), int, and MD.

Here is the call graph for this function:

double BBS::time

(

)

References impl_, and BBSImpl::time().

Referenced by take().

Here is the call graph for this function:

double BBS::upkdouble

(

)

References d, debug, impl_, and BBSImpl::upkdouble().

Here is the call graph for this function:

int BBS::upkint

(

)

References debug, i, impl_, and BBSImpl::upkint().

Here is the call graph for this function:

char * BBS::upkpickle

(

size_t *

size

)

References debug, impl_, s, and BBSImpl::upkpickle().

Here is the call graph for this function:

char * BBS::upkstr

(

)

References debug, impl_, s, and BBSImpl::upkstr().

Here is the call graph for this function:

void BBS::upkvec	(	int	n,
		double *	px
	)

References debug, impl_, and BBSImpl::upkvec().

Here is the call graph for this function:

double BBS::wait_time

(

)

References impl_, and BBSImpl::wait_time_.

void BBS::worker

(

)

References impl_, and BBSImpl::worker().

Here is the call graph for this function:

boolean BBS::working	(	int &	id,
		double &	x,
		int &	userid
	)

References impl_, and BBSImpl::working().

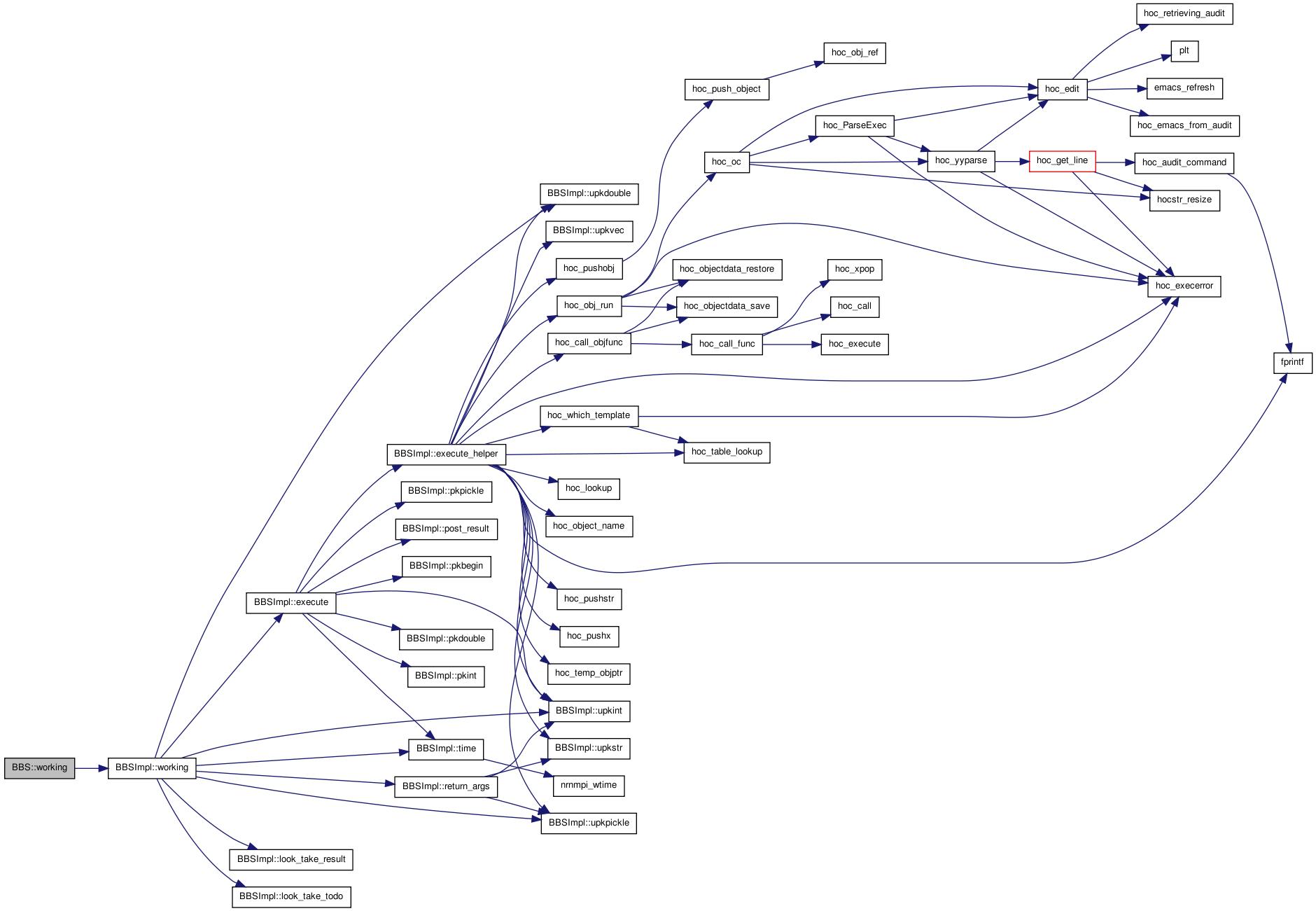

Here is the call graph for this function:

---

Member Data Documentation

BBSImpl* BBS::impl_ [protected]

Referenced by add_wait_time(), context(), done(), init(), integ_time(), look(), look_take(), netpar_solve(), perror(), pkbegin(), pkdouble(), pkint(), pkpickle(), pkstr(), pkvec(), post(), pyret(), send_time(), submit(), take(), time(), upkdouble(), upkint(), upkpickle(), upkstr(), upkvec(), wait_time(), worker(), working(), and ~BBS().

---

The documentation for this class was generated from the following files:

• /home/hines/neuron/nrndox/src/parallel/bbs.h
• /home/hines/neuron/nrndox/src/nrniv/netpar.cpp
• /home/hines/neuron/nrndox/src/parallel/bbs.cpp
• /home/hines/neuron/nrndox/src/parallel/ocbbs.cpp
