BBSImpl Class Reference

#include <bbsimpl.h>

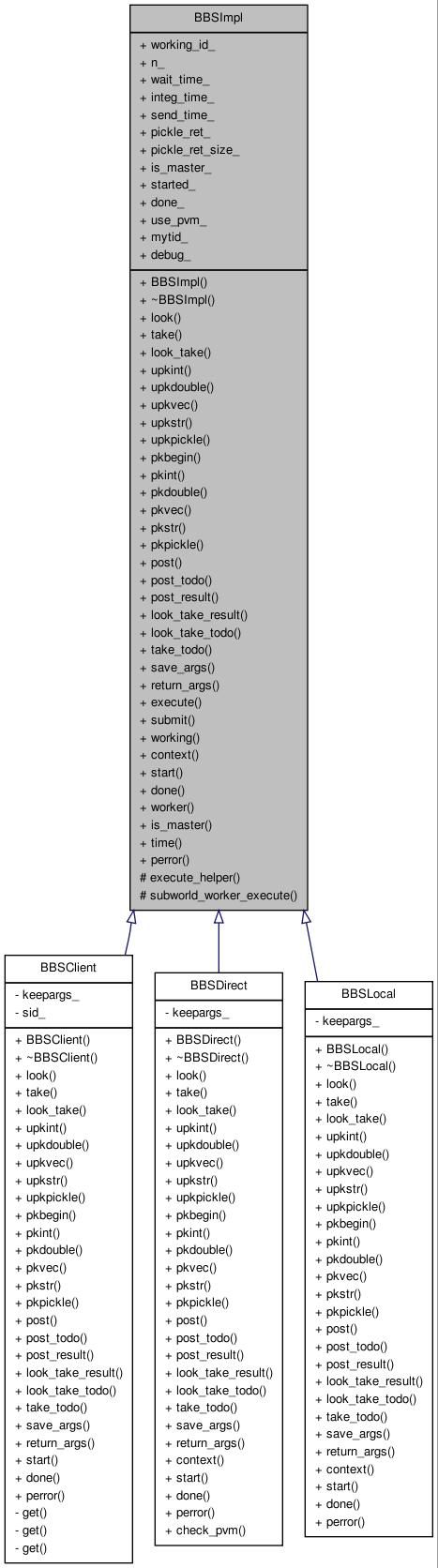

Inheritance diagram for BBSImpl:

[legend]

List of all members.

Public Member Functions
	BBSImpl ()
virtual	~BBSImpl ()
virtual boolean	look (const char *)=0
virtual void	take (const char *)=0
virtual boolean	look_take (const char *)=0
virtual int	upkint ()=0
virtual double	upkdouble ()=0
virtual void	upkvec (int, double *)=0
virtual char *	upkstr ()=0
virtual char *	upkpickle (size_t *)=0
virtual void	pkbegin ()=0
virtual void	pkint (int)=0
virtual void	pkdouble (double)=0
virtual void	pkvec (int, double *)=0
virtual void	pkstr (const char *)=0
virtual void	pkpickle (const char *, size_t)=0
virtual void	post (const char *)=0
virtual void	post_todo (int parentid)=0
virtual void	post_result (int id)=0
virtual int	look_take_result (int pid)=0
virtual int	look_take_todo ()=0
virtual int	take_todo ()=0
virtual void	save_args (int userid)=0
virtual void	return_args (int userid)
virtual void	execute (int id)
virtual int	submit (int userid)
virtual boolean	working (int &id, double &x, int &userid)
virtual void	context ()
virtual void	start ()
virtual void	done ()
virtual void	worker ()
virtual boolean	is_master ()
virtual double	time ()
virtual void	perror (const char *)
Public Attributes
int	working_id_
int	n_
double	wait_time_
double	integ_time_
double	send_time_
char *	pickle_ret_
size_t	pickle_ret_size_
Static Public Attributes
static boolean	is_master_ = false
static boolean	started_ = false
static boolean	done_ = false
static boolean	use_pvm_
static int	mytid_
static int	debug_ = 0
Protected Member Functions
char *	execute_helper (size_t *, int id)
void	subworld_worker_execute ()

---

Constructor & Destructor Documentation

BBSImpl::BBSImpl

(

)

References integ_time_, n_, pickle_ret_, pickle_ret_size_, send_time_, wait_time_, and working_id_.

BBSImpl::~BBSImpl

(

)

[virtual]

References pickle_ret_.

---

Member Function Documentation

void BBSImpl::context

(

)

[virtual]

Reimplemented in BBSDirect, and BBSLocal.

Referenced by BBS::context().

void BBSImpl::done

(

)

[virtual]

Reimplemented in BBSDirect, BBSLocal, and BBSClient.

References done_.

Referenced by BBS::done(), and subworld_worker_execute().

void BBSImpl::execute

(

int

id

)

[virtual]

References debug, debug_, execute_helper(), hoc_ac_, i, pkbegin(), pkdouble(), pkint(), pkpickle(), post_result(), rs, s, time(), upkint(), and working_id_.

Referenced by BBSLocal::take(), worker(), and working().

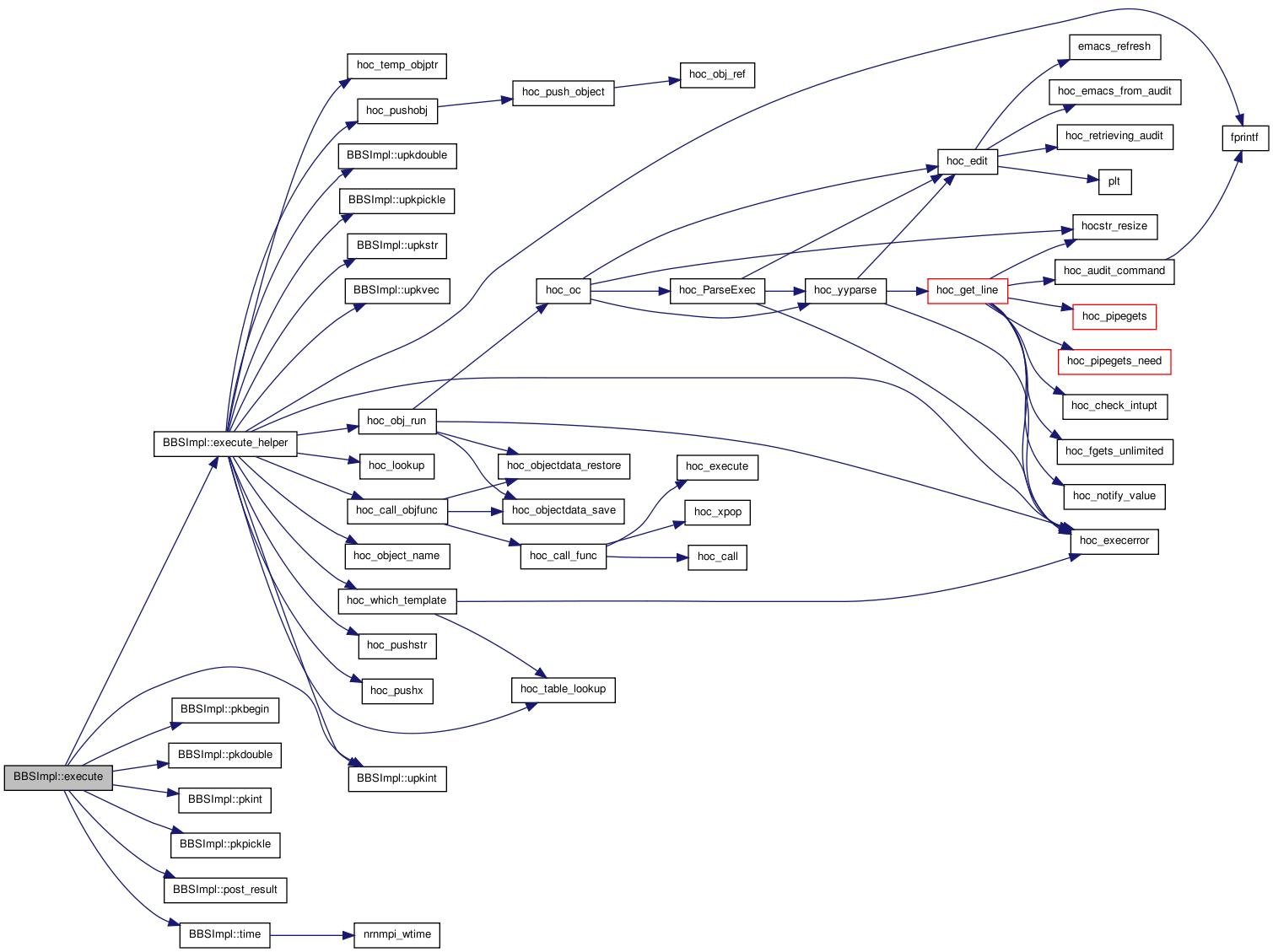

Here is the call graph for this function:

char * BBSImpl::execute_helper	(	size_t *	size,
		int	id
	)			[protected]

References assert, fprintf(), hoc_ac_, hoc_call_objfunc(), hoc_execerror(), hoc_lookup(), hoc_obj_run(), hoc_object_name(), hoc_pushobj(), hoc_pushstr(), hoc_pushx(), hoc_table_lookup(), hoc_temp_objptr(), hoc_which_template(), ITERATE, nil, nrnmpi_myid, nrnmpi_numprocs, nrnmpi_numprocs_bbs, nrnmpi_numprocs_world, nrnpy_callpicklef, nrnpy_pickle2po, OBJ, pickle_ret_, pickle_ret_size_, rs, Symbol::u, upkdouble(), upkint(), upkpickle(), upkstr(), upkvec(), and Vect.

Referenced by execute().

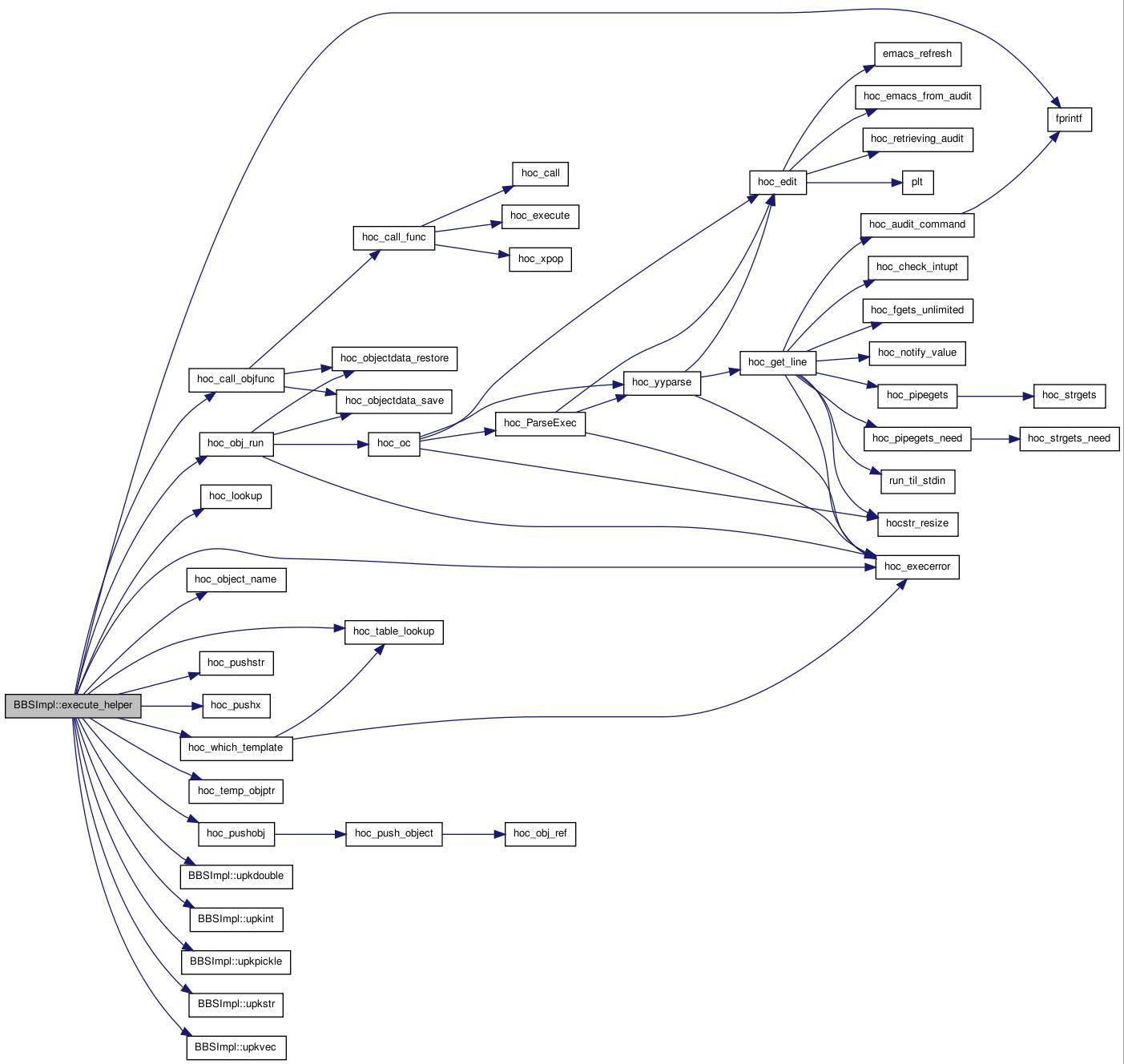

Here is the call graph for this function:

boolean BBSImpl::is_master

(

)

[virtual]

References is_master_.

Referenced by worker().

virtual boolean BBSImpl::look

(

const char *

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by BBS::look().

virtual boolean BBSImpl::look_take

(

const char *

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by BBS::look_take().

virtual int BBSImpl::look_take_result

(

int

pid

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by working().

virtual int BBSImpl::look_take_todo

(

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by working().

void BBSImpl::perror

(

const char *

)

[virtual]

Reimplemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by BBS::perror().

virtual void BBSImpl::pkbegin

(

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute(), and BBS::pkbegin().

virtual void BBSImpl::pkdouble

(

double

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute(), and BBS::pkdouble().

virtual void BBSImpl::pkint

(

int

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute(), and BBS::pkint().

virtual void BBSImpl::pkpickle	(	const char *	,
		size_t
	)			[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute(), and BBS::pkpickle().

virtual void BBSImpl::pkstr

(

const char *

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by BBS::pkstr().

virtual void BBSImpl::pkvec	(	int	,
		double *
	)			[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by BBS::pkvec().

virtual void BBSImpl::post

(

const char *

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by BBS::post().

virtual void BBSImpl::post_result

(

int

id

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute().

virtual void BBSImpl::post_todo

(

int

parentid

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by submit().

void BBSImpl::return_args

(

int

userid

)

[virtual]

Reimplemented in BBSDirect, BBSLocal, and BBSClient.

References upkint(), upkpickle(), and upkstr().

Referenced by working().

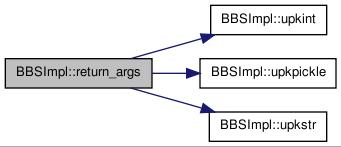

Here is the call graph for this function:

virtual void BBSImpl::save_args

(

int

userid

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by submit().

void BBSImpl::start

(

)

[virtual]

Reimplemented in BBSDirect, BBSLocal, and BBSClient.

References started_.

int BBSImpl::submit

(

int

userid

)

[virtual]

References debug, n_, post_todo(), save_args(), and working_id_.

Referenced by BBS::submit().

Here is the call graph for this function:

void BBSImpl::subworld_worker_execute

(

)

[protected]

References assert, done(), hoc_ac_, hoc_call_objfunc(), hoc_lookup(), hoc_obj_run(), hoc_pushobj(), hoc_pushstr(), hoc_pushx(), hoc_temp_objptr(), i, n, nil, nrnpy_pickle2po, rs, s, Vect, and x.

Referenced by worker().

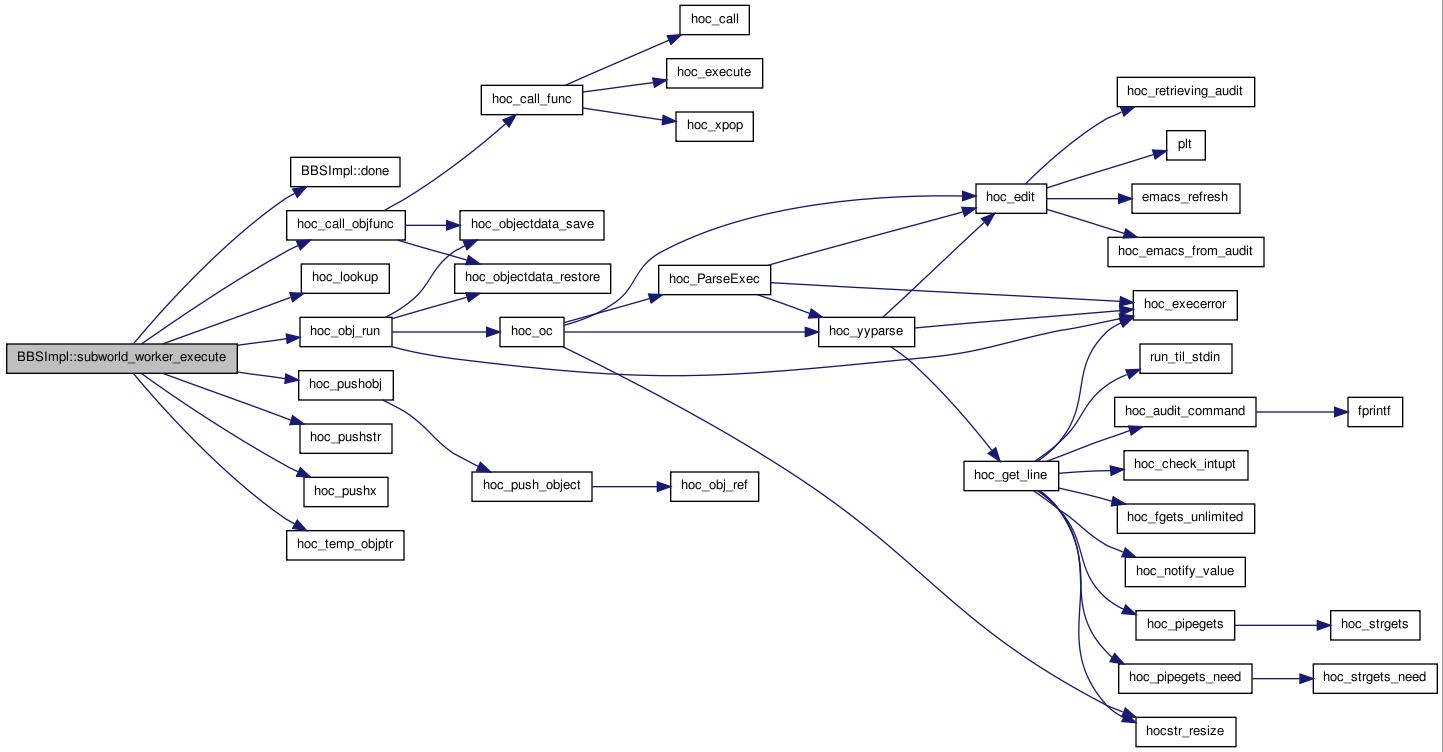

Here is the call graph for this function:

virtual void BBSImpl::take

(

const char *

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by BBS::take().

virtual int BBSImpl::take_todo

(

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by worker().

double BBSImpl::time

(

)

[virtual]

References nrnmpi_wtime().

Referenced by BBS::add_wait_time(), execute(), BBS::time(), worker(), and working().

Here is the call graph for this function:

virtual double BBSImpl::upkdouble

(

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute_helper(), BBS::upkdouble(), and working().

virtual int BBSImpl::upkint

(

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute(), execute_helper(), return_args(), BBS::upkint(), and working().

virtual char* BBSImpl::upkpickle

(

size_t *

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute_helper(), return_args(), BBS::upkpickle(), and working().

virtual char* BBSImpl::upkstr

(

)

[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute_helper(), return_args(), and BBS::upkstr().

virtual void BBSImpl::upkvec	(	int	,
		double *
	)			[pure virtual]

Implemented in BBSDirect, BBSLocal, and BBSClient.

Referenced by execute_helper(), and BBS::upkvec().

void BBSImpl::worker

(

)

[virtual]

References execute(), id, is_master(), nrnmpi_myid_bbs, subworld_worker_execute(), take_todo(), and time().

Referenced by BBS::worker().

Here is the call graph for this function:

boolean BBSImpl::working	(	int &	id,
		double &	x,
		int &	userid
	)			[virtual]

References assert, debug, execute(), look_take_result(), look_take_todo(), n_, pickle_ret_, pickle_ret_size_, return_args(), t, time(), upkdouble(), upkint(), upkpickle(), and working_id_.

Referenced by BBS::working().

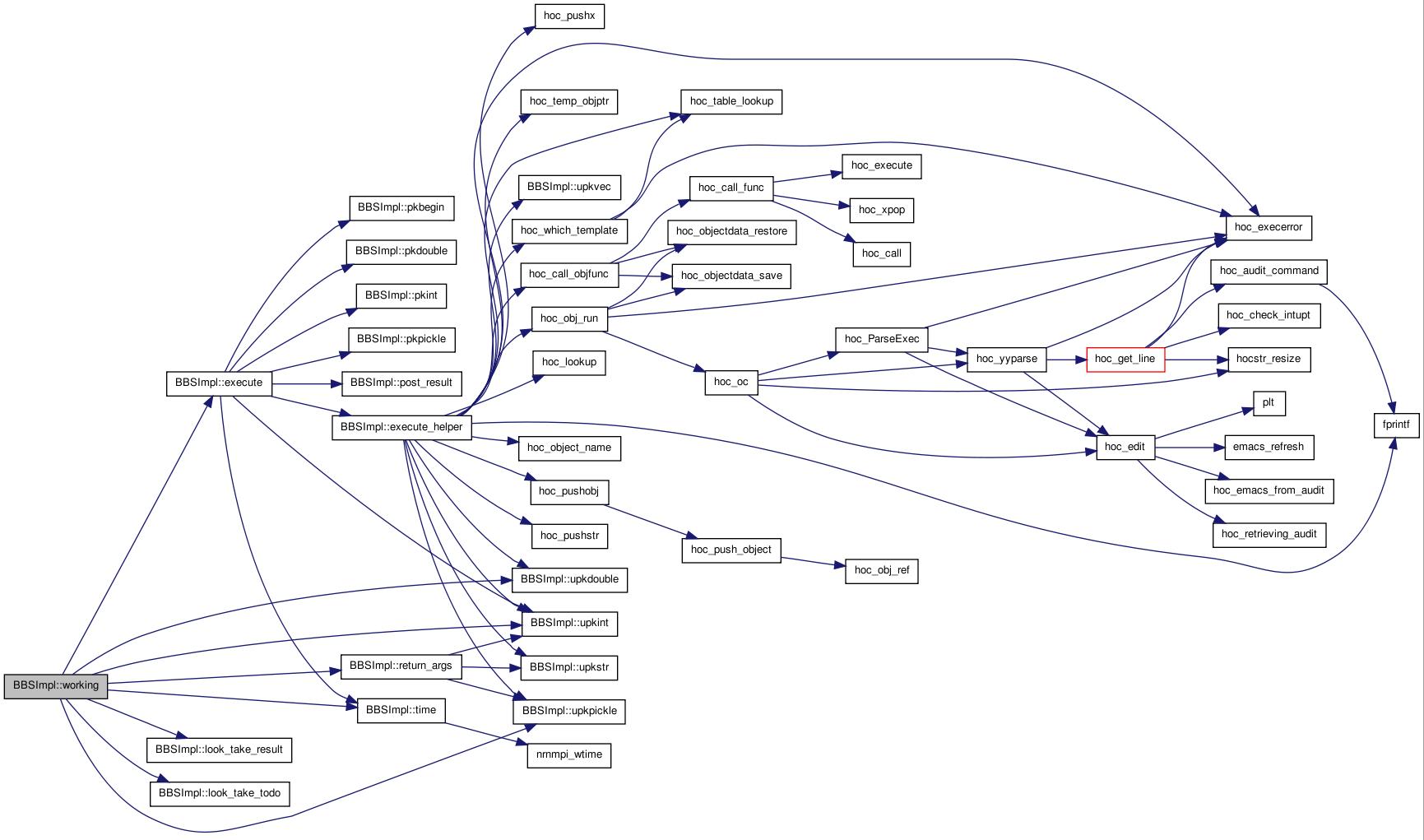

Here is the call graph for this function:

---

Member Data Documentation

int BBSImpl::debug_ = 0 [static]

Referenced by execute().

boolean BBSImpl::done_ = false [static]

Referenced by done().

double BBSImpl::integ_time_

Referenced by BBSImpl(), BBS::integ_time(), and BBS::netpar_solve().

boolean BBSImpl::is_master_ = false [static]

Referenced by BBS::init(), is_master(), BBS::is_master(), and BBSLocal::start().

int BBSImpl::mytid_ [static]

Referenced by BBSLocal::start().

int BBSImpl::n_

Referenced by BBSImpl(), submit(), and working().

char* BBSImpl::pickle_ret_

Referenced by BBSImpl(), execute_helper(), BBS::pyret(), working(), and ~BBSImpl().

size_t BBSImpl::pickle_ret_size_

Referenced by BBSImpl(), execute_helper(), BBS::pyret(), and working().

double BBSImpl::send_time_

Referenced by BBSImpl(), BBS::netpar_solve(), and BBS::send_time().

boolean BBSImpl::started_ = false [static]

Referenced by BBS::init(), BBSLocal::start(), and start().

boolean BBSImpl::use_pvm_ [static]

Referenced by BBS::init().

double BBSImpl::wait_time_

Referenced by BBS::add_wait_time(), BBSImpl(), BBS::netpar_solve(), and BBS::wait_time().

int BBSImpl::working_id_

Referenced by BBSImpl(), execute(), BBSLocal::save_args(), submit(), and working().

---

The documentation for this class was generated from the following files:

• /home/hines/neuron/nrndox/src/parallel/bbsimpl.h
• /home/hines/neuron/nrndox/src/parallel/bbs.cpp
• /home/hines/neuron/nrndox/src/parallel/ocbbs.cpp
• /home/hines/neuron/nrndox/src/parallel/subworld.cpp
