Graph Class Reference

#include <graph.h>

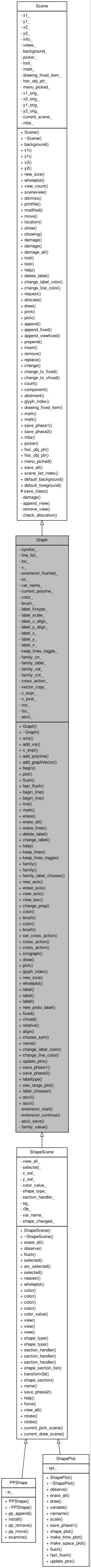

Inheritance diagram for Graph:

[legend]

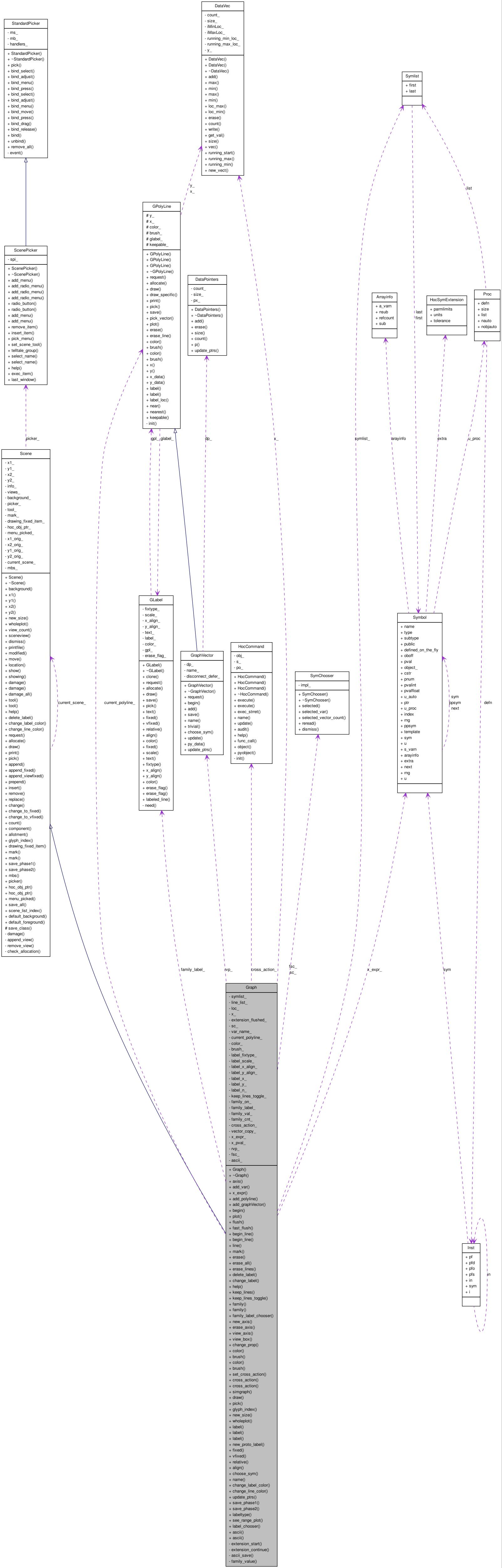

Collaboration diagram for Graph:

[legend]

List of all members.

Public Types
enum	{ CROSSHAIR = Scene::EXTRATOOL, CHANGELABEL, PICK, EXTRAGRAPHTOOL }
Public Member Functions
	Graph (boolean=true)
virtual	~Graph ()
void	axis (DimensionName, float min, float max, float pos=0., int ntics=-1, int nminor=0, int invert=0, boolean number=true)
GraphLine *	add_var (const char *, const Color *, const Brush *, boolean usepointer, int fixtype=1, double *p=nil, const char *lab=nil, Object *obj=nil)
void	x_expr (const char *, boolean usepointer)
void	add_polyline (GPolyLine *)
void	add_graphVector (GraphVector *)
void	begin ()
void	plot (float)
void	flush ()
void	fast_flush ()
void	begin_line (const char *s=nil)
void	begin_line (const Color *, const Brush *, const char *s=nil)
void	line (Coord x, Coord y)
void	mark (Coord x, Coord y, char style='+', float size=12, const Color *=nil, const Brush *=nil)
void	erase ()
virtual void	erase_all ()
void	erase_lines ()
virtual void	delete_label (GLabel *)
virtual boolean	change_label (GLabel *, const char *, GLabel *gl=nil)
virtual void	help ()
void	keep_lines ()
void	keep_lines_toggle ()
void	family (boolean)
void	family (const char *)
void	family_label_chooser ()
void	new_axis ()
void	erase_axis ()
void	view_axis ()
void	view_box ()
void	change_prop ()
void	color (int)
void	brush (int)
const Color *	color () const
const Brush *	brush () const
void	set_cross_action (const char *, boolean vectorcopy=false)
void	cross_action (char, GPolyLine *, int)
void	cross_action (char, Coord, Coord)
void	simgraph ()
virtual void	draw (Canvas *, const Allocation &) const
virtual void	pick (Canvas *, const Allocation &, int depth, Hit &)
virtual GlyphIndex	glyph_index (const Glyph *)
virtual void	new_size (Coord x1, Coord y1, Coord x2, Coord y2)
virtual void	wholeplot (Coord &x1, Coord &y1, Coord &x2, Coord &y2) const
GLabel *	label (float x, float y, const char *s, int fixtype, float scale, float x_align, float y_align, const Color *)
GLabel *	label (float x, float y, const char *s, float n=0, int fixtype=-1)
GLabel *	label (const char *s, int fixtype=-1)
GLabel *	new_proto_label () const
void	fixed (float scale)
void	vfixed (float scale)
void	relative (float scale)
void	align (float x, float y)
void	choose_sym ()
void	name (char *)
void	change_label_color (GLabel *)
void	change_line_color (GPolyLine *)
void	update_ptrs ()
virtual void	save_phase1 (ostream &)
virtual void	save_phase2 (ostream &)
int	labeltype () const
virtual void	see_range_plot (GraphVector *)
Static Public Member Functions
static boolean	label_chooser (const char *, char *, GLabel *, Coord x=400., Coord y=400.)
static void	ascii (ostream *)
static ostream *	ascii ()
Private Member Functions
void	extension_start ()
void	extension_continue ()
void	ascii_save (ostream &o) const
void	family_value ()
Private Attributes
Symlist *	symlist_
LineList	line_list_
int	loc_
DataVec *	x_
boolean	extension_flushed_
SymChooser *	sc_
CopyString *	var_name_
GPolyLine *	current_polyline_
const Color *	color_
const Brush *	brush_
int	label_fixtype_
float	label_scale_
float	label_x_align_
float	label_y_align_
float	label_x_
float	label_y_
float	label_n_
TelltaleState *	keep_lines_toggle_
boolean	family_on_
GLabel *	family_label_
double	family_val_
int	family_cnt_
HocCommand *	cross_action_
boolean	vector_copy_
Symbol *	x_expr_
double *	x_pval_
GraphVector *	rvp_
Static Private Attributes
static SymChooser *	fsc_
static ostream *	ascii_

---

Member Enumeration Documentation

anonymous enum

Enumerator:

CROSSHAIR
CHANGELABEL
PICK
EXTRAGRAPHTOOL

---

Constructor & Destructor Documentation

Graph::Graph

(

boolean

= true

)

virtual Graph::~Graph

(

)

[virtual]

---

Member Function Documentation

void Graph::add_graphVector

(

GraphVector *

)

void Graph::add_polyline

(

GPolyLine *

)

GraphLine* Graph::add_var	(	const char *	,
		const Color *	,
		const Brush *	,
		boolean	usepointer,
		int	fixtype = 1,
		double *	p = nil,
		const char *	lab = nil,
		Object *	obj = nil
	)

void Graph::align	(	float	x,
		float	y
	)

static ostream* Graph::ascii

(

)

[static]

static void Graph::ascii

(

ostream *

)

[static]

void Graph::ascii_save

(

ostream &

o

)

const [private]

void Graph::axis	(	DimensionName	,
		float	min,
		float	max,
		float	pos = 0.,
		int	ntics = -1,
		int	nminor = 0,
		int	invert = 0,
		boolean	number = true
	)

void Graph::begin

(

)

void Graph::begin_line	(	const Color *	,
		const Brush *	,
		const char *	s = nil
	)

void Graph::begin_line

(

const char *

s = nil

)

const Brush* Graph::brush

(

)

const [inline]

References brush_.

void Graph::brush

(

int

)

virtual boolean Graph::change_label	(	GLabel *	,
		const char *	,
		GLabel *	gl = nil
	)			[virtual]

void Graph::change_label_color

(

GLabel *

)

[virtual]

Reimplemented from Scene.

void Graph::change_line_color

(

GPolyLine *

)

[virtual]

Reimplemented from Scene.

void Graph::change_prop

(

)

void Graph::choose_sym

(

)

const Color* Graph::color

(

)

const [inline]

References color_.

void Graph::color

(

int

)

void Graph::cross_action	(	char	,
		Coord	,
		Coord
	)

void Graph::cross_action	(	char	,
		GPolyLine *	,
		int
	)

virtual void Graph::delete_label

(

GLabel *

)

[virtual]

Reimplemented from Scene.

virtual void Graph::draw	(	Canvas *	,
		const Allocation &
	)			const [virtual]

Reimplemented from Scene.

Reimplemented in ShapePlot.

void Graph::erase

(

)

virtual void Graph::erase_all

(

)

[virtual]

Reimplemented in ShapeScene, and ShapePlot.

void Graph::erase_axis

(

)

void Graph::erase_lines

(

)

void Graph::extension_continue

(

)

[private]

void Graph::extension_start

(

)

[private]

void Graph::family

(

const char *

)

void Graph::family

(

boolean

)

void Graph::family_label_chooser

(

)

void Graph::family_value

(

)

[private]

void Graph::fast_flush

(

)

Reimplemented in ShapePlot.

void Graph::fixed

(

float

scale

)

void Graph::flush

(

)

Reimplemented in ShapeScene, and ShapePlot.

virtual GlyphIndex Graph::glyph_index

(

const Glyph *

)

[virtual]

Reimplemented from Scene.

virtual void Graph::help

(

)

[virtual]

Reimplemented from Scene.

Reimplemented in ShapeScene.

void Graph::keep_lines

(

)

void Graph::keep_lines_toggle

(

)

GLabel* Graph::label	(	const char *	s,
		int	fixtype = -1
	)

GLabel* Graph::label	(	float	x,
		float	y,
		const char *	s,
		float	n = 0,
		int	fixtype = -1
	)

GLabel* Graph::label	(	float	x,
		float	y,
		const char *	s,
		int	fixtype,
		float	scale,
		float	x_align,
		float	y_align,
		const Color *
	)

static boolean Graph::label_chooser	(	const char *	,
		char *	,
		GLabel *	,
		Coord	x = 400.,
		Coord	y = 400.
	)			[static]

int Graph::labeltype

(

)

const [inline]

References label_fixtype_.

void Graph::line	(	Coord	x,
		Coord	y
	)

void Graph::mark	(	Coord	x,
		Coord	y,
		char	style = '+',
		float	size = 12,
		const Color *	= nil,
		const Brush *	= nil
	)

void Graph::name

(

char *

)

void Graph::new_axis

(

)

GLabel* Graph::new_proto_label

(

)

const

virtual void Graph::new_size	(	Coord	x1,
		Coord	y1,
		Coord	x2,
		Coord	y2
	)			[virtual]

Reimplemented from Scene.

Referenced by ivoc_gr_size().

virtual void Graph::pick	(	Canvas *	,
		const Allocation &	,
		int	depth,
		Hit &
	)			[virtual]

Reimplemented from Scene.

void Graph::plot

(

float

)

void Graph::relative

(

float

scale

)

virtual void Graph::save_phase1

(

ostream &

)

[virtual]

Reimplemented from Scene.

Reimplemented in ShapePlot.

virtual void Graph::save_phase2

(

ostream &

)

[virtual]

Reimplemented from Scene.

Reimplemented in ShapeScene.

virtual void Graph::see_range_plot

(

GraphVector *

)

[virtual]

void Graph::set_cross_action	(	const char *	,
		boolean	vectorcopy = false
	)

void Graph::simgraph

(

)

void Graph::update_ptrs

(

)

Reimplemented in ShapePlot.

Referenced by nrniv_recalc_ptrs().

void Graph::vfixed

(

float

scale

)

void Graph::view_axis

(

)

void Graph::view_box

(

)

virtual void Graph::wholeplot	(	Coord &	x1,
		Coord &	y1,
		Coord &	x2,
		Coord &	y2
	)			const [virtual]

Reimplemented from Scene.

Reimplemented in ShapeScene.

Referenced by ivoc_gr_size().

void Graph::x_expr	(	const char *	,
		boolean	usepointer
	)

---

Member Data Documentation

ostream* Graph::ascii_ [static, private]

const Brush* Graph::brush_ [private]

Referenced by brush().

const Color* Graph::color_ [private]

Referenced by color().

HocCommand* Graph::cross_action_ [private]

GPolyLine* Graph::current_polyline_ [private]

boolean Graph::extension_flushed_ [private]

int Graph::family_cnt_ [private]

GLabel* Graph::family_label_ [private]

boolean Graph::family_on_ [private]

double Graph::family_val_ [private]

SymChooser* Graph::fsc_ [static, private]

TelltaleState* Graph::keep_lines_toggle_ [private]

int Graph::label_fixtype_ [private]

Referenced by labeltype().

float Graph::label_n_ [private]

float Graph::label_scale_ [private]

float Graph::label_x_ [private]

float Graph::label_x_align_ [private]

float Graph::label_y_ [private]

float Graph::label_y_align_ [private]

LineList Graph::line_list_ [private]

int Graph::loc_ [private]

GraphVector* Graph::rvp_ [private]

SymChooser* Graph::sc_ [private]

Symlist* Graph::symlist_ [private]

CopyString* Graph::var_name_ [private]

Reimplemented in ShapeScene.

boolean Graph::vector_copy_ [private]

DataVec* Graph::x_ [private]

Symbol* Graph::x_expr_ [private]

double* Graph::x_pval_ [private]

---

The documentation for this class was generated from the following file:

• /home/hines/neuron/nrndox/src/ivoc/graph.h
