# Glyph¶↑

class Glyph
Syntax:
g = h.Glyph()
Description:

Specification of a drawing. The drawing can be rendered on a Graph as many times as desired using

graph.glyph(g, x, y, scalex, scaley, angle)


The drawing style uses commands reminiscent of postscript.

Example:

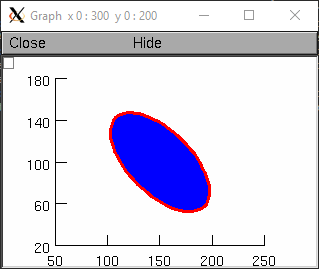

Rotated ellipse

from neuron import h, gui

gr = h.Graph()

gl = h.Glyph()
gl.circle(0,0,1)
gl.fill(3)
gl.s(2, 3)

gr.glyph(gl, 150, 100, 30, 60, h.PI/4*h.DEG)


Glyph.path()
Syntax:
g = g.path()
Description:
Begin a new path.

Glyph.m()
Syntax:
g = g.m(x, y)
Description:
Set the current point to the coordinates.

Glyph.l()
Syntax:
g = g.l(x, y)
Description:
A line from the current point to the coordinates.

Glyph.curve()
Syntax:
g = g.curve(x,y, x1,y1, x2,y2)
Description:
Draw a curve from the current point to x,y

Glyph.close()
Syntax:
g = g.close()
Description:
A line from the current point to the first point of the path.

Glyph.circle()
Syntax:
g = g.circle(x, y, r)
Description:
A circle at location x, y and radius r. This is implemented using the glyph methods new_path, move_to, curve_to, and close_path. Can stroke and/or fill.

Glyph.s()
Syntax:

g = g.s()

g = g.s(colorindex)

g = g.s(colorindex, brushindex)

Description:
Render the current path as a line.

Glyph.fill()
Syntax:

g = g.fill()

g = g.fill(colorindex)

Description:
For a closed path, fill the interior with the indicated color.

Glyph.cpt()
Syntax:
g = g.cpt(x,y)
Description:
Draw a small open rectangle at the coordinates. Intended to indicate special locations on the glyph which can be selected. Not very useful at this time.

Glyph.erase()
Syntax:
g = g.erase()
Description:
The drawing is empty

Glyph.label()
Syntax:
g = g.label("string", x, y, fixtype, colorindex)
Description:
Not implemented

Glyph.glyph()
Syntax:
g = g.glyph(glyphobject, x, y, scale, angle)
Description:
Not implemented

Syntax:
g = g.gif("filename")
Description:
Reads the gif image in the file. All Glyph arguments still work when the glyph contains a gif image. The gif image is drawn first so other drawing specs will appear on top of it.
